The choice of riders who want to go the distance and aren’t willing to be confined to just one surface. Building on our expertise and legacy of endurance excellence, the Roadmachine combines comfort and efficiency into a highly versatile performance road bike that delivers an outstanding riding experience.
With a lightweight carbon frame, the Roadmachine endurance bike is packed with features like full cable integration, downtube storage, and an integrated rear light, making it ready for any challenge. Wide, fast-rolling tires provide a smooth ride across various road surfaces.
With a reliable Shimano 105 groupset and other quality components the Roadmachine THREE provides excellent value for money. Our own integrated RSM01 stem and new Endurance Alloy handlebar provide top-notch ergonomics, offering the perfect balance of control and comfort for all your rides.

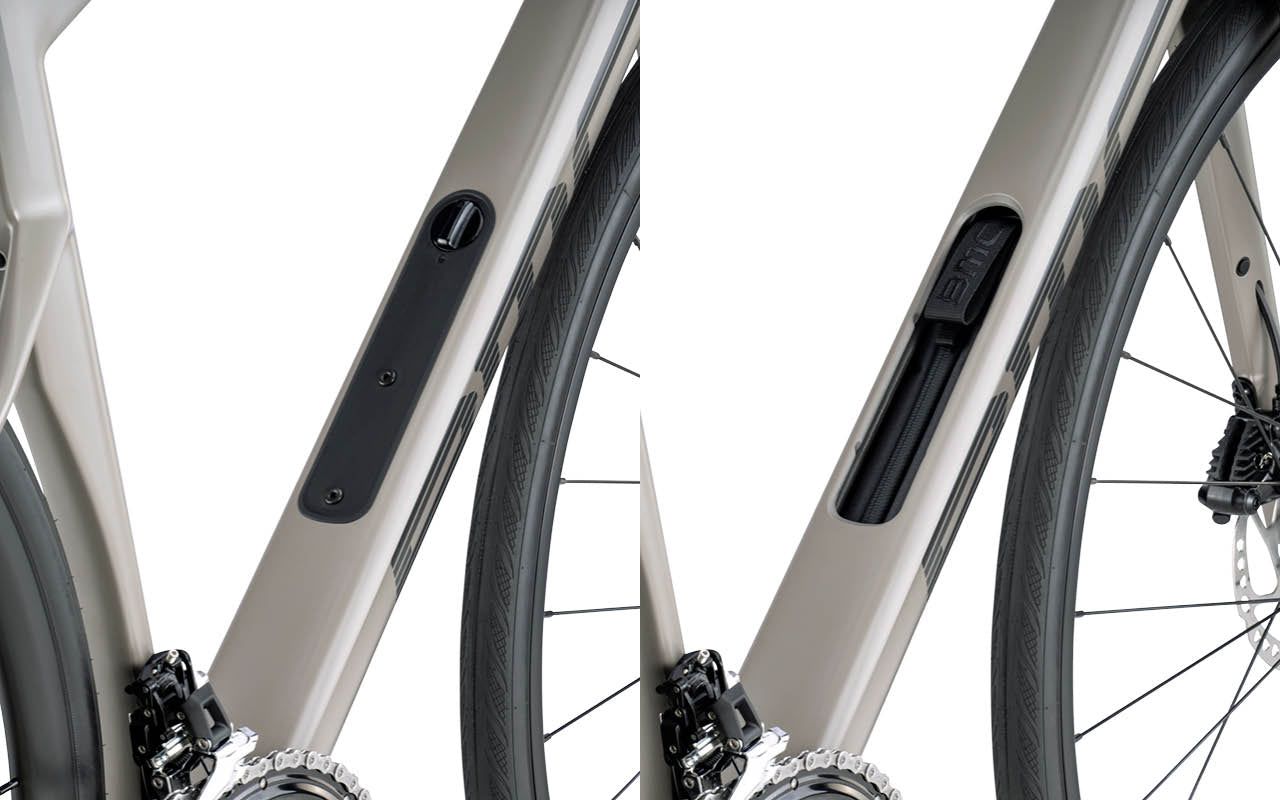

Downtube Storage with Integrated Bottle Cages
The choice of riders who want to go the distance and aren’t willing to be confined to just one surface. Building on our expertise and legacy of endurance excellence, the Roadmachine combines comfort and efficiency into a highly versatile performance road bike that delivers an outstanding riding experience.
With a lightweight carbon frame, the Roadmachine endurance bike is packed with features like full cable integration, downtube storage, and an integrated rear light, making it ready for any challenge. Wide, fast-rolling tires provide a smooth ride across various road surfaces.
With a reliable Shimano 105 groupset and other quality components the Roadmachine THREE provides excellent value for money. Our own integrated RSM01 stem and new Endurance Alloy handlebar provide top-notch ergonomics, offering the perfect balance of control and comfort for all your rides.

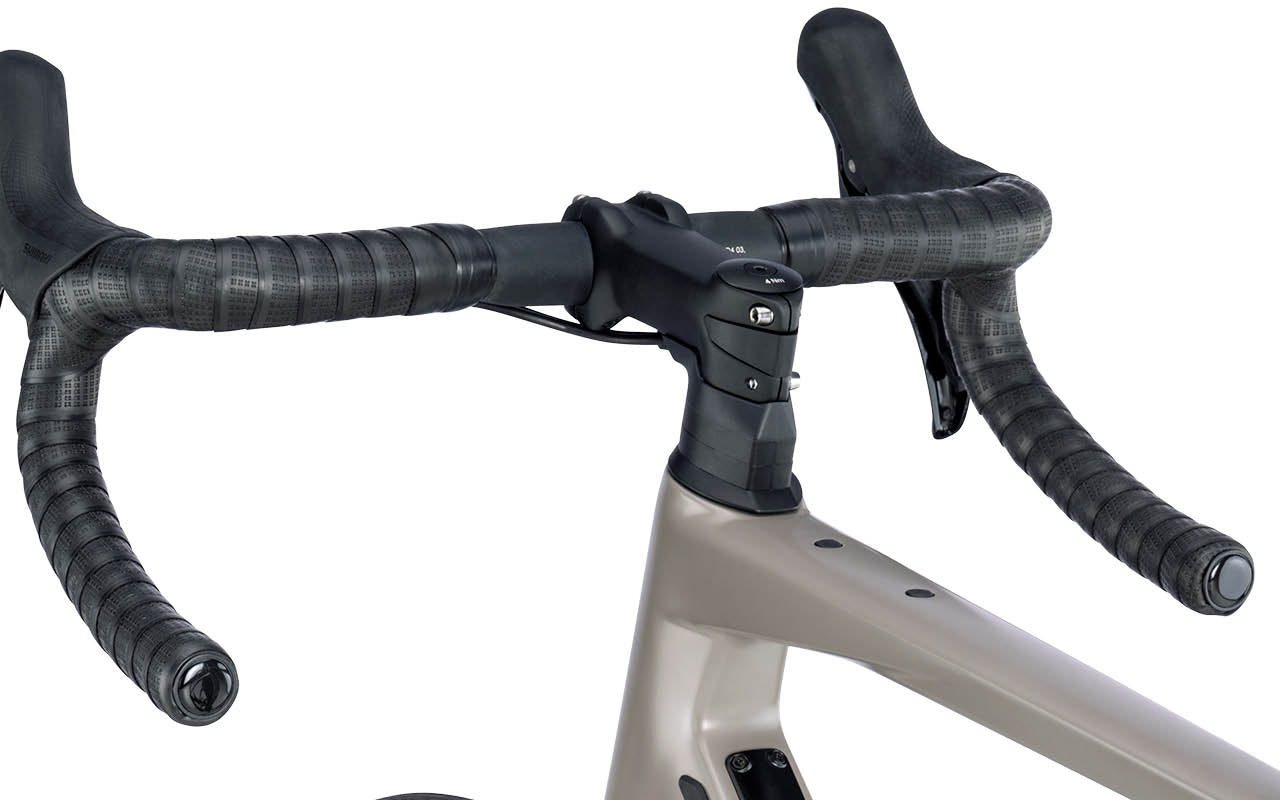

innovationRSM01 for Integrated Cockpit System
The RSM01 stem now comes integrated. This trusted stem is designed for user friendly stack adjustability, allowing you to create the perfect position for your perfect ride. Bringing an incredibly low weight, high stiffness and stealth cable routing.

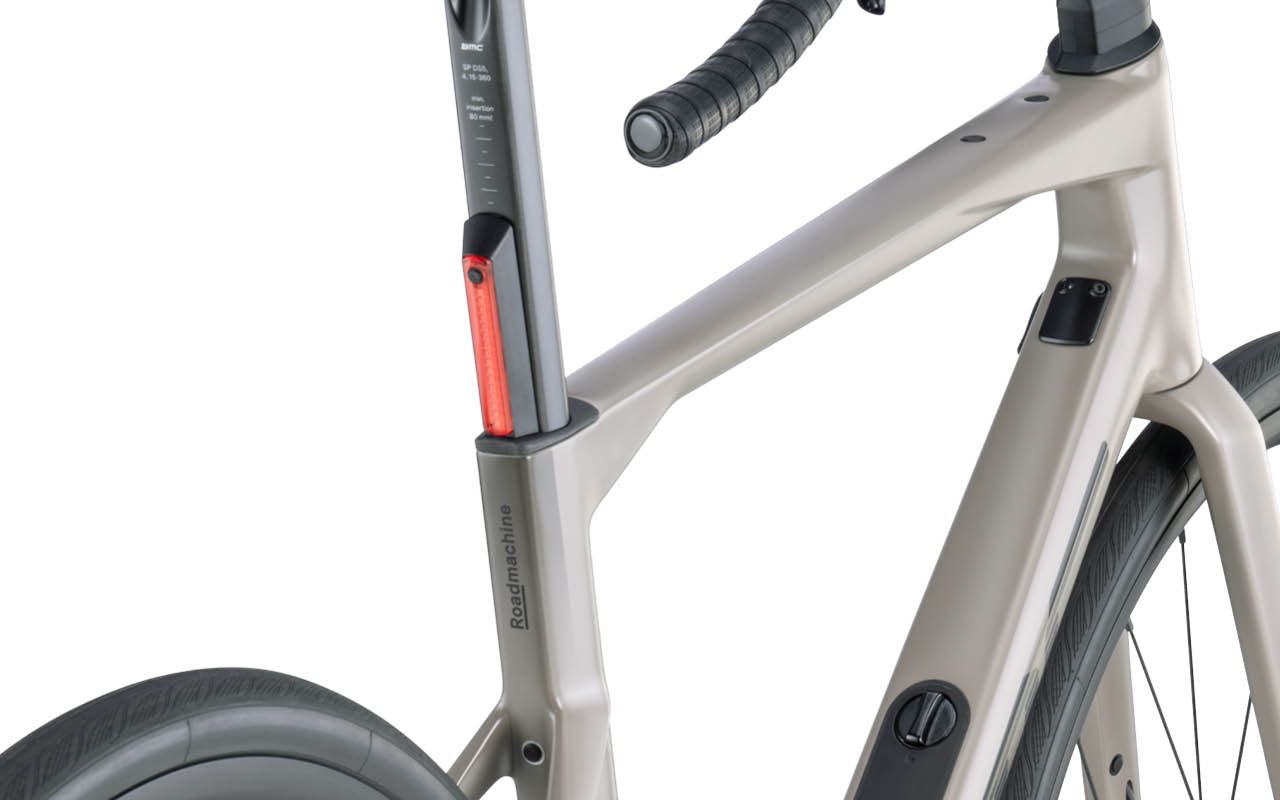

Integrated Rear Light
As you encounter traffic, tunnels and changing conditions, you need an ultra-compact, integrated rear light that’s USB chargeable and easily attached/detached from the seatpost.

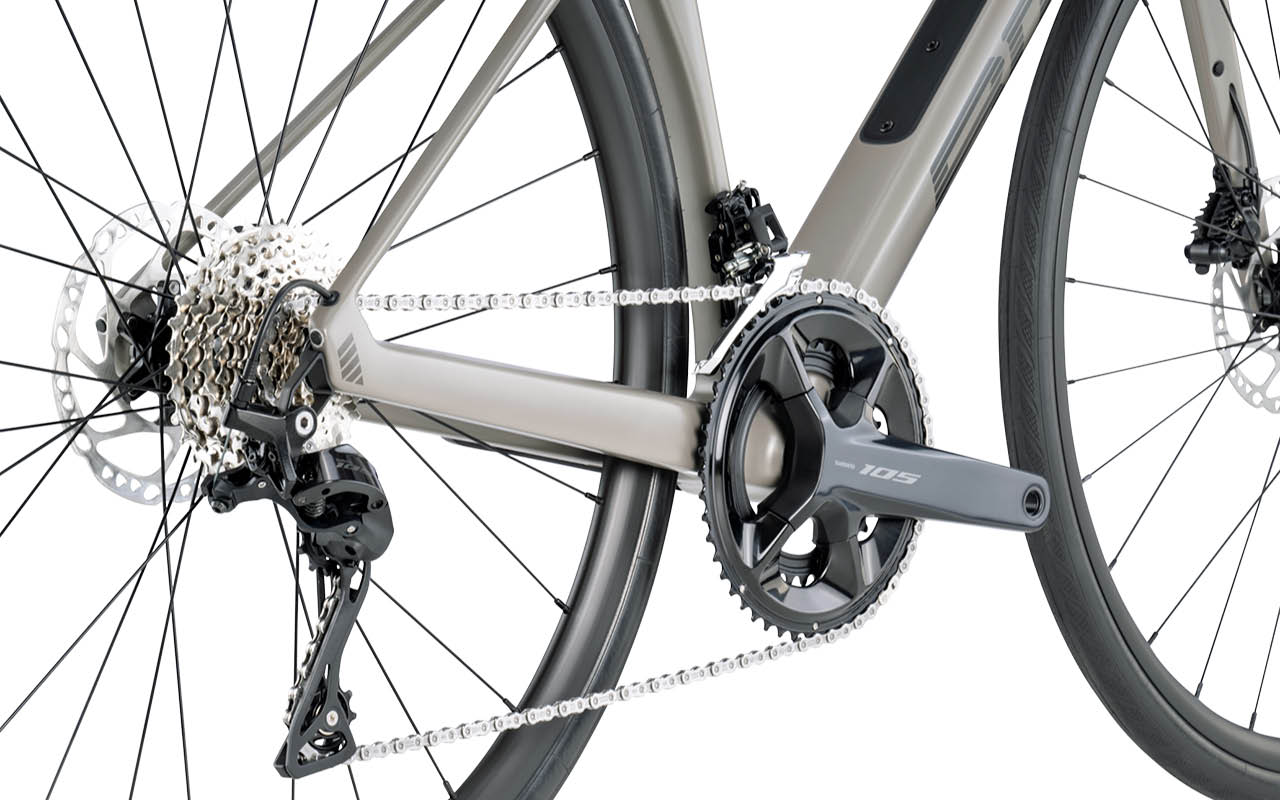

TCC Endurance
The Roadmachine takes our TCC Endurance vision further with big wheel capabilities, a dropped BB, adapted head tube angle, increased stack, and one of the industry’s smallest rear centers for a responsive ride.
Technical Overview
Frameset
Frame:
Roadmachine Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Fender Mounts | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle
Fork:
Roadmachine Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset Size 47-51 | 45mm offset Size 54-61
Cockpit
Stem:
BMC RSM 01 | Integrated Cockpit System Technology
Handlebar:
BMC HB D4 03, 0, 12 | Alloy 6061 | Endurance Geometry | 125mm drop, 70mm reach, 12° flare
Seat
Seatpost:
Roadmachine Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Saddle:
Selle Italia Model X Superflow | FeC Alloy Rail | 145mm
Drivetrain
Crankset:
SHIMANO 105 (FC-R7100)
Chainrings:
50-34T
Cassette:
SHIMANO (CS-HG710)
Cassette Size:
11-36T
Chain:
SHIMANO CN-M6100
Front Derailleur:
SHIMANO 105 (FD-R7100)
Rear Derailleur:
SHIMANO 105 (RD-R7100)
Shifters:
SHIMANO 105 (ST-R7120)
Gears:
2 x 12
Bottom Bracket:
SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB)
Brakes
Brake Levers / Calipers:
SHIMANO 105 (BR-R7170)
Rotors:
SHIMANO SM-RT64 | Centerlock
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
PRD23 | 23mm
Hubs (F/R):
SHIMANO HB-TC500-12 & FH-TC500-HL | Center Lock| 28H
Tires:
Vittoria Rubino V | Tube type | 32mm [or] Vittoria Rubino IV | Tube type | 28mm
Tubeless Information:
Non-Tubeless Rims | Non-Tubeless Clincher Tire
Accessories
In the Box:
Integrated Rear Light 25 | Storage Pouch
Additional Information
Tire Clearance:
up to "40mm measured" (frameset clearance) but limited to "34mm measured" by the front derailleur
Weight without Pedals:
9.1kg | Size 54 as pictured with all accessories
ASTM Classification:
Level 2
System Weight Limit:
110kg
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <160 | 158-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 370 | 379 | 383 | 388 | 393 | 398 |
| Stack | 525 | 550 | 570 | 595 | 620 | 645 |
| Bar Drop | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width | 390/438 | 390/438 | 390/438 | 410/458 | 410/458 | 430/478 |
| BB Drop | 75 | 75 | 75 | 75 | 75 | 75 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 379 | 379 | 379 | 379 | 379 | 379 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center | 579 | 596 | 594 | 607 | 620 | 633 |
| Head Tube | 112 | 138 | 154 | 181 | 207 | 233 |
| Head Tube Angle | 71.4° | 71.4° | 72.2° | 72.2° | 72.2° | 72.2° |
| Rear Center | 415 | 415 | 415 | 415 | 415 | 415 |
| Seat Angle | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° |
| Seat Tube | 414 | 461 | 488 | 508 | 529 | 550 |
| Seatpost Length | 280 | 320 | 360 | 360 | 400 | 400 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height | 726 | 762 | 786 | 807 | 828 | 849 |
| Stem Angle | -8 | -8 | -8 | -8 | -8 | -8 |
| Stem Length | 90 | 90 | 100 | 100 | 110 | 110 |
| Top Tube | 520 | 537 | 546 | 559 | 571 | 581 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 982 | 1000 | 997 | 1010 | 1023 | 1036 |
