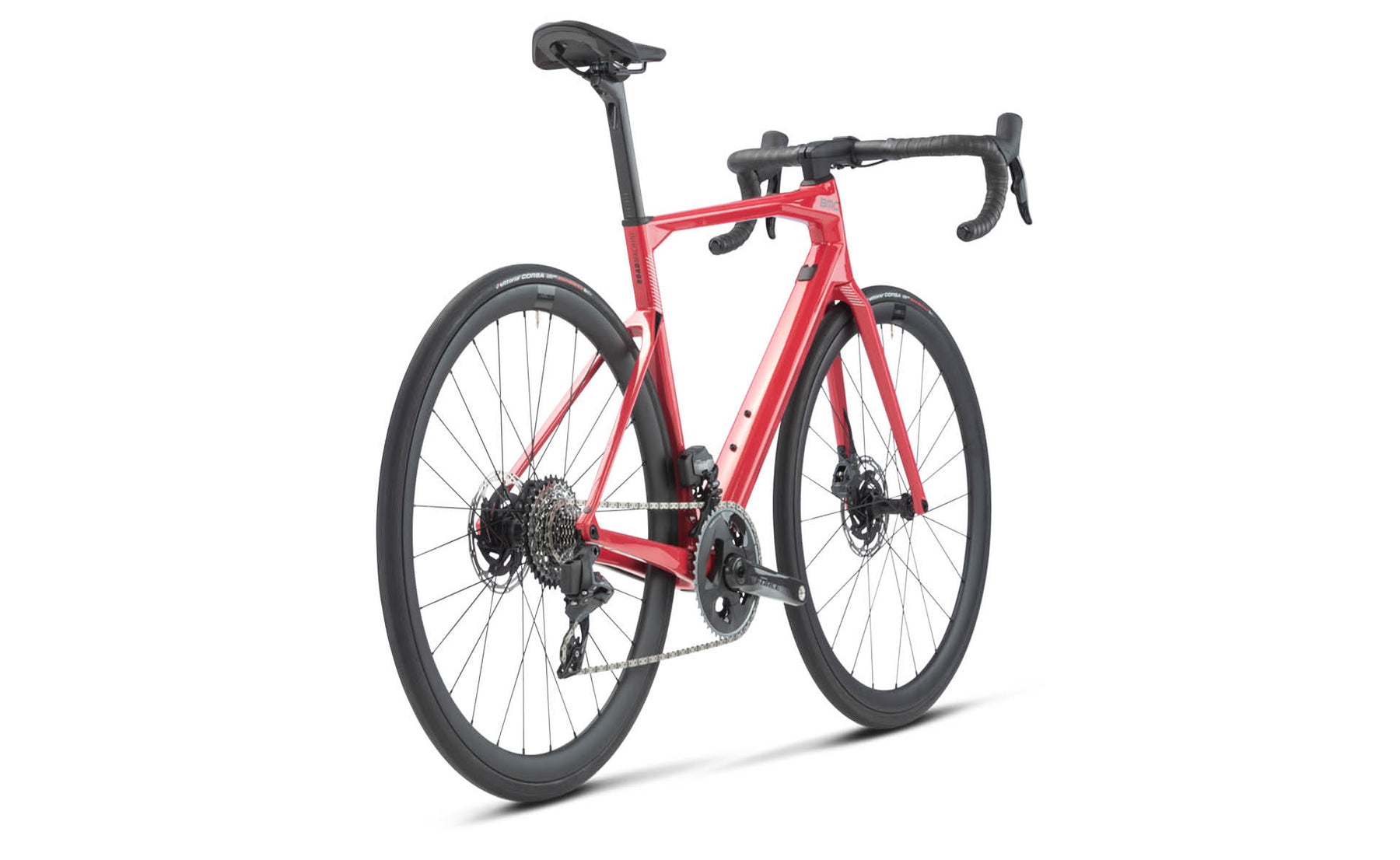

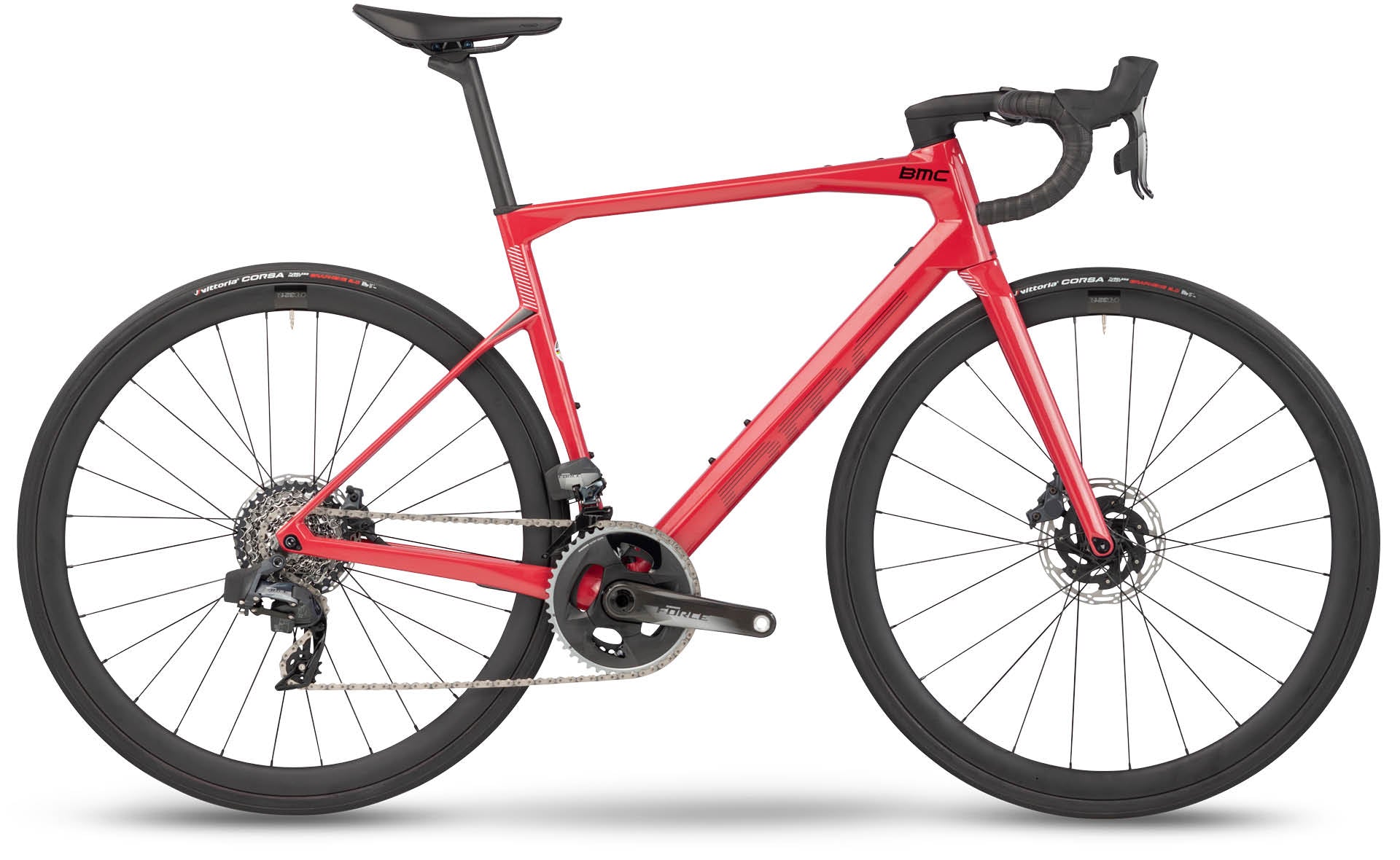

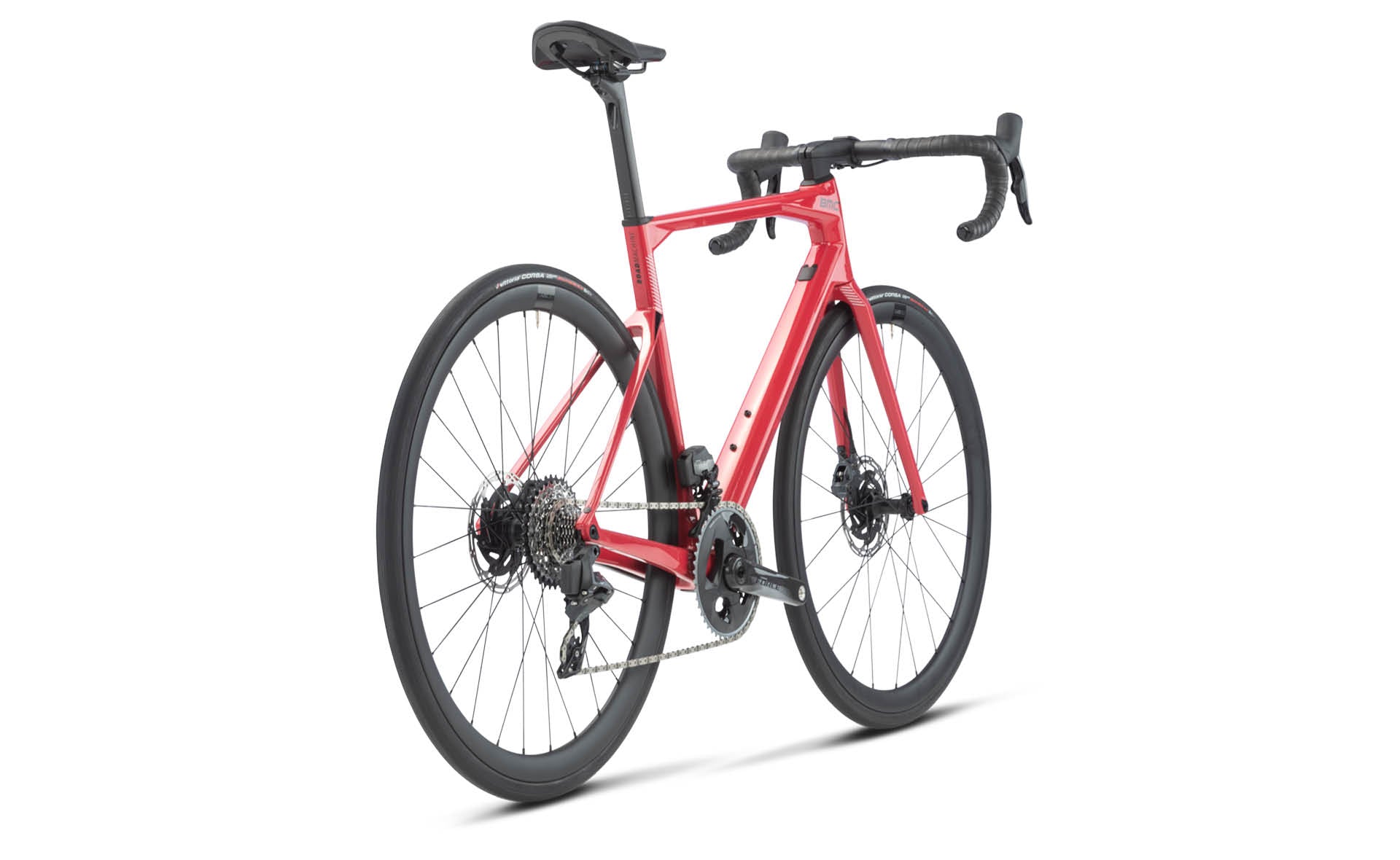

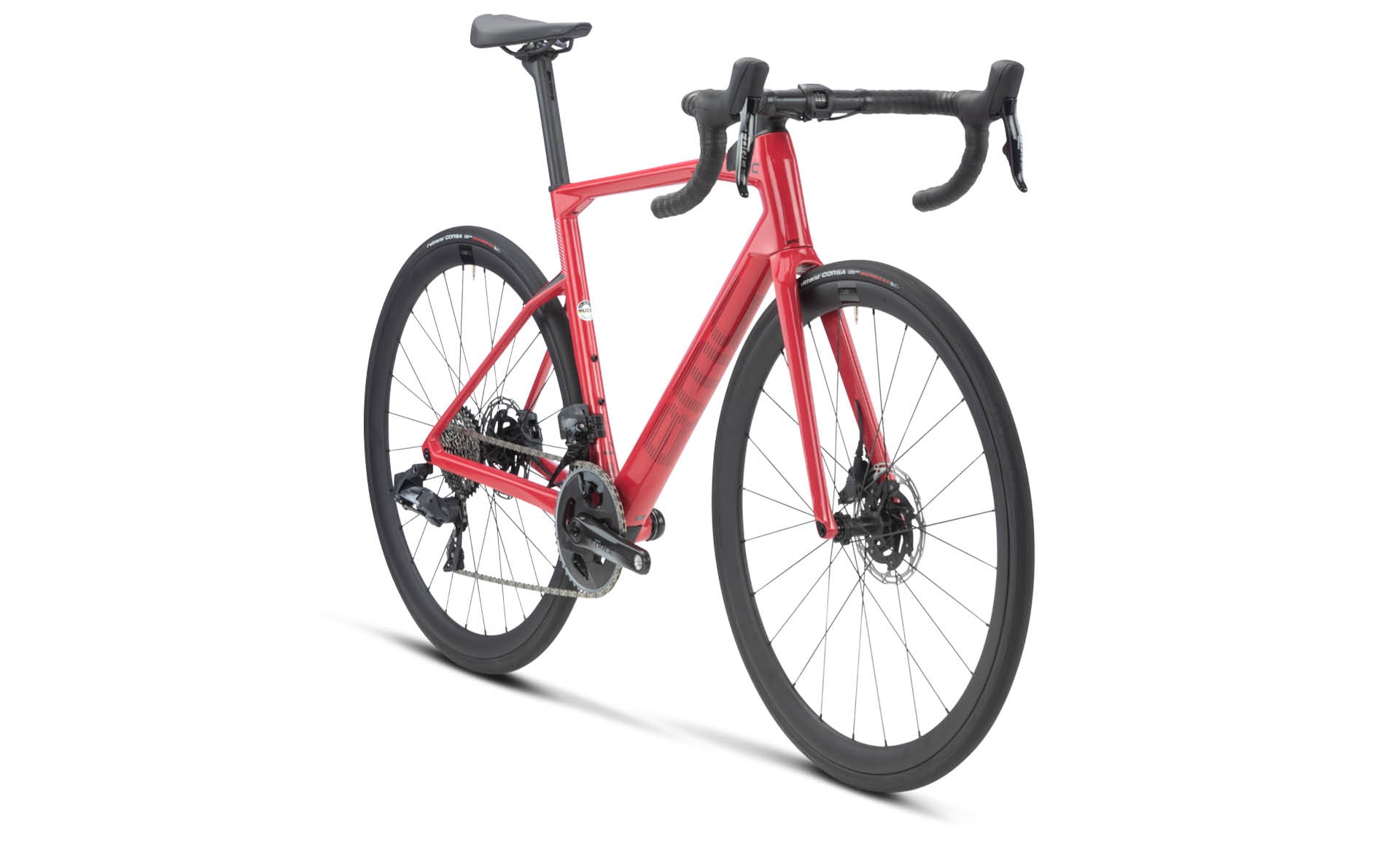

BMC Bikes | Roadmachine 01 FOUR CORAL RED / BLACK

Roadmachine 01 FOUR


Color: Coral Red / Black
Model Year: 2023

BMC Archive Product

Technical Overview

Frameset

Frame:
Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit

Stem:
BMC ICS2 | Integrated Cockpit System Technology

Handlebar:
BMC RAB 02 | Ergo Top Shape | Compact Bend

Seat

Seatpost:
Roadmachine 01 Premium Carbon D-Shaped Seatpost

Saddle:
Fizik Argo Tempo R5 | 150mm

Drivetrain

Crankset:
SRAM Force

Chainrings:
46-33T

Cassette:
SRAM Force XG-1270

Cassette Size:
10-36T

Chain:
SRAM Apex

Front Derailleur:
SRAM Force eTap AXS

Rear Derailleur:
SRAM Force eTap AXS

Shifters:
SRAM Force eTap AXS HRD

Gears:
2 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM Force eTap AXS HRD

Rotors:
SRAM Centerline X

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
CRD-321 SL Carbon | Tubeless Ready | 35mm

Hubs (F/R):
CRD-321 SL

Tires:
Vittoria Corsa N.EXT | 28mm

Additional Information

Tire Clearance:
33mm measured tire

Weight without Pedals:
8.08 kg | Size 54

ASTM Classification:
Level 1

System Weight Limit:
110kg
