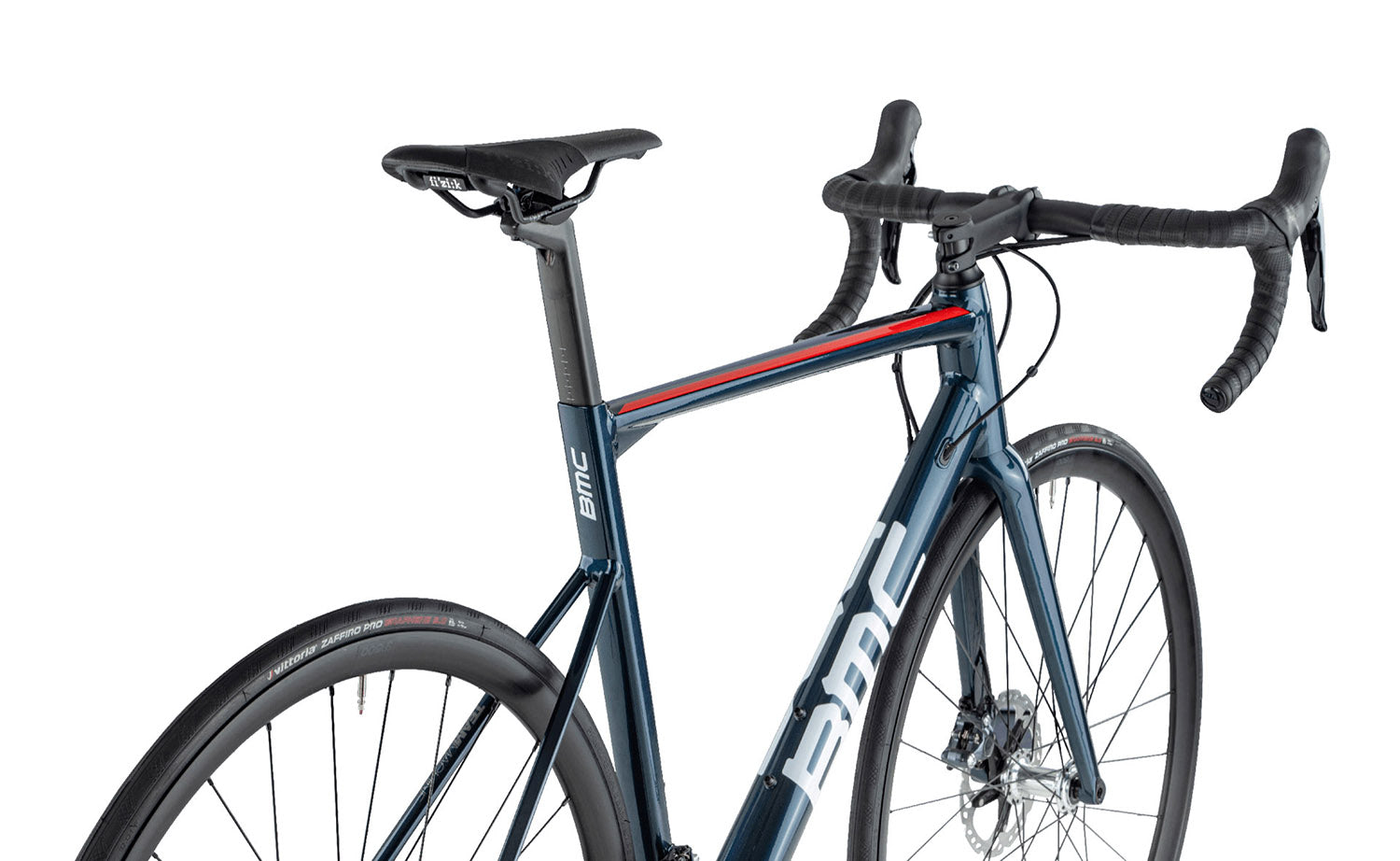

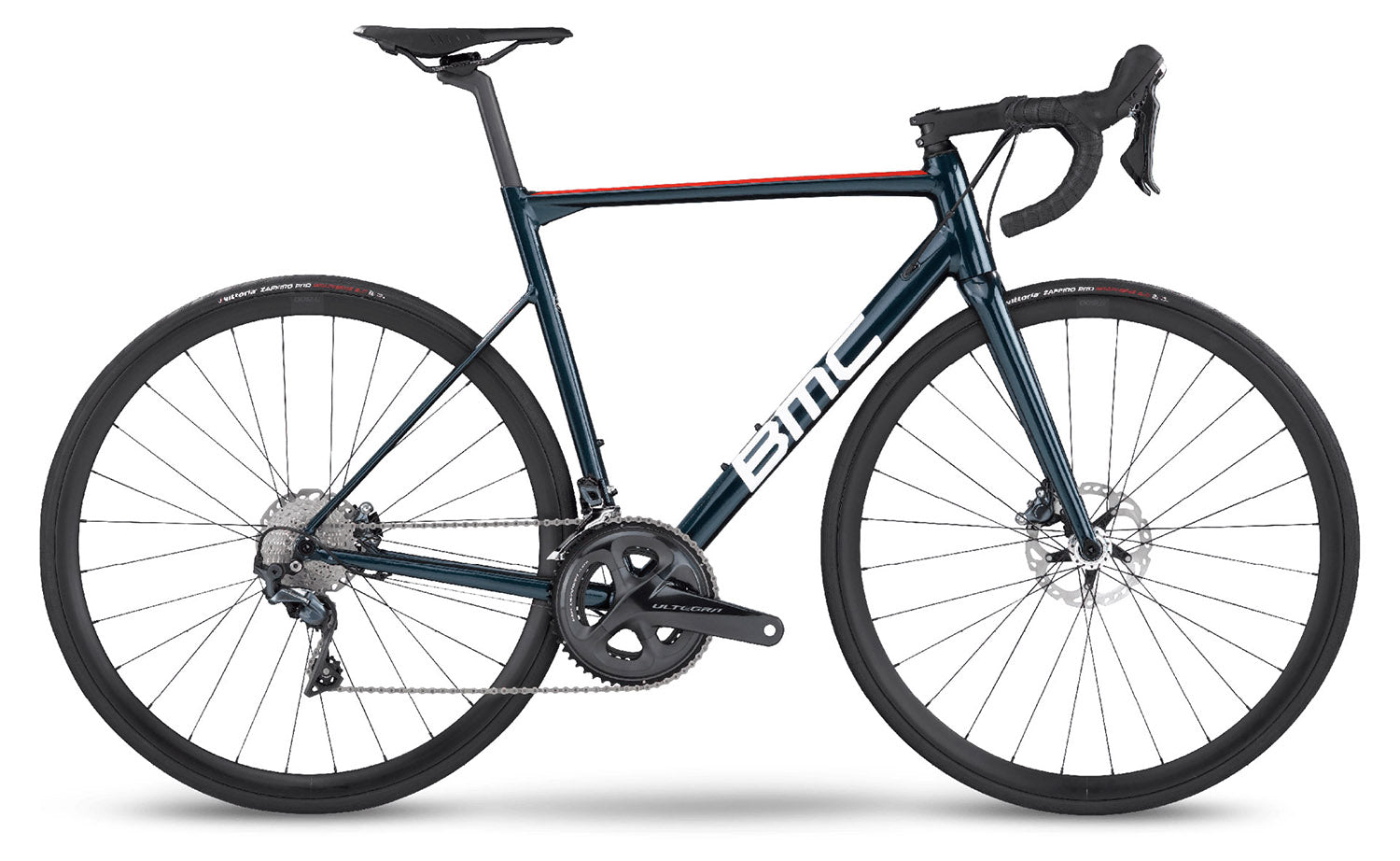

Name: Teammachine ALR ONE
Brand: BMC
SKU: 30001296
Price: 2999.0 EUR
Availability: OutOfStock

Teammachine ALR ONE | BMC | bikes | Road, Road | Racing

Petrol / White

BMC Archive Product

Compatible Parts & Accessories

[{"id":40929182285903,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30001296","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine ALR ONE - 47","public_title":"47","options":["47"],"price":299900,"weight":13000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027870480","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40929182318671,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30001297","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine ALR ONE - 51","public_title":"51","options":["51"],"price":299900,"weight":13000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027870572","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40929182351439,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30001298","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine ALR ONE - 54","public_title":"54","options":["54"],"price":299900,"weight":13000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027870664","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40929182384207,"title":"57","option1":"57","option2":null,"option3":null,"sku":"30001299","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine ALR ONE - 57","public_title":"57","options":["57"],"price":299900,"weight":13000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027870657","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40929182416975,"title":"60","option1":"60","option2":null,"option3":null,"sku":"30001300","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine ALR ONE - 60","public_title":"60","options":["60"],"price":299900,"weight":13000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027870640","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Technical Overview

Frameset

Frame:
Teammachine ALR Disc Premium Aluminium with Tuned Compliance Concept Race | Triple-butted Hydroformed Smoothweld Aluminium | Internal Cable Routing | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine SLR Carbon Disk with Tuned Compliance Concept Race | Internal Cable Routing | Flat Mount Disc | 12 x 100mm Thru-Axle

Suspension

Front Suspension:

Rear Suspension:

Remote Lockout:

Cockpit

Stem:
BMC RSM 01

Handlebar:
BMC RAB 02 | Ergo Top Shape | Compact Bend

Grips:

Seat

Seatpost:
Teammachine ALR Carbon D-Shaped Seatpost | 15mm Offset

Saddle:
Fizik Antares R7

Drivetrain

Crankset:
SHIMANO Ultegra (FC-R8000)

Chainrings:
52-36T

Cassette:
SHIMANO Ultegra (CS-R8000)

Cassette Size:
11-30T

Chain:
SHIMANO CN-HG701

Front Derailleur:
SHIMANO Ultegra (FD-R8000)

Rear Derailleur:
SHIMANO Ultegra (RD-R8000)

Shifters:
SHIMANO Ultegra (ST-R8020)

Gears:
2 x 11

Bottom Bracket:
BSA Threaded Bottom Bracket

Brakes

Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8070)

Rotors:
SHIMANO RT-MT800

Rotor Size (F/R):
160 / 140mm

Wheels

Rims:
SR500 | 30mm

Hubs (F/R):
CL-712 (F) | RXC-1425 (R) | Thru-Axle

Tires:
Vittoria Zaffiro Pro | 25mm

Additional Information

Tire Clearance:
28mm

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	47	51	54	57	60
Rider Height	<168	166-174	172-180	178-188	>186
Reach	365	374	383	391	402
Stack	515	539	559	583	610
Bar Drop	125	125	125	125	125
Bar Reach	70	70	70	70	70
Bar Width	400	420	420	420	440
BB Drop	69	69	69	69	69
Crank Length	170	170	172.5	172.5	175
Fork Length	369	369	369	369	369
Fork Rake	41.6	41.6	41.6	41.6	41.6
Front Center	571	575	585	601	620
Head Tube	118	138	157	182	210
Head Tube Angle	70.5	72	72.5	72.5	72.5
Rear Center	410	410	410	410	410
Seat Angle	73.5	73.5	73.5	73.5	73.5
Seat Tube	442	505	535	565	600
Seatpost Length	300	330	330	330	330
Seatpost Offset	15	15	15	15	15
Standover Height	705	751	778	804	835
Stem Angle	± 8	± 8	± 8	± 8	± 8
Stem Length	90	100	110	110	120
Top Tube	518	534	549	564	583
Trail	76	66	63	63	63
Wheelbase	971	975	985	1001	1020

Seatpost Clamp and Seatpost Installation

Teammachine ALR ONE
