Name: Timemachine ROAD 01 THREE
Brand: BMC
SKU: 30001463
Price: 6499.0 EUR
Availability: OutOfStock

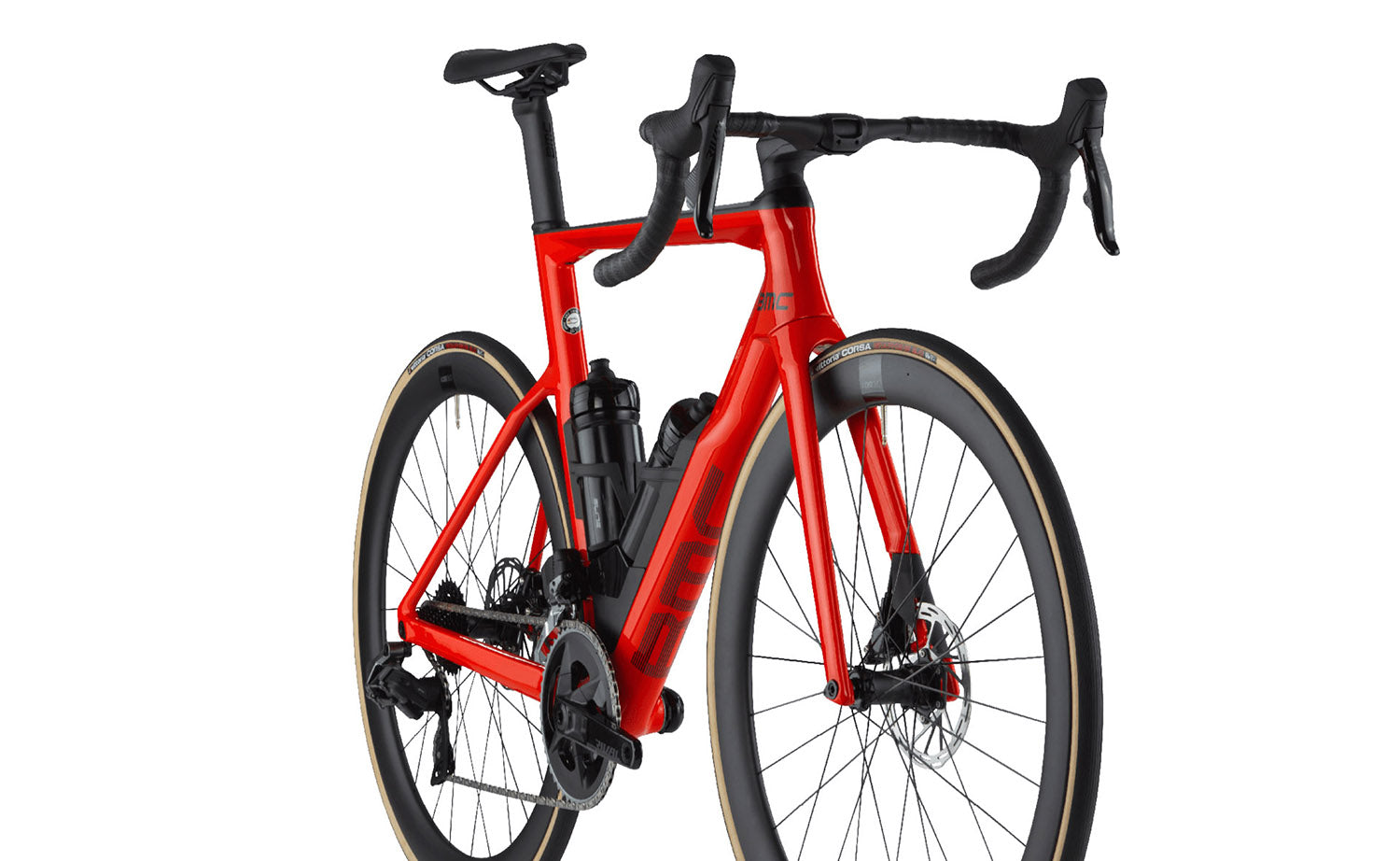

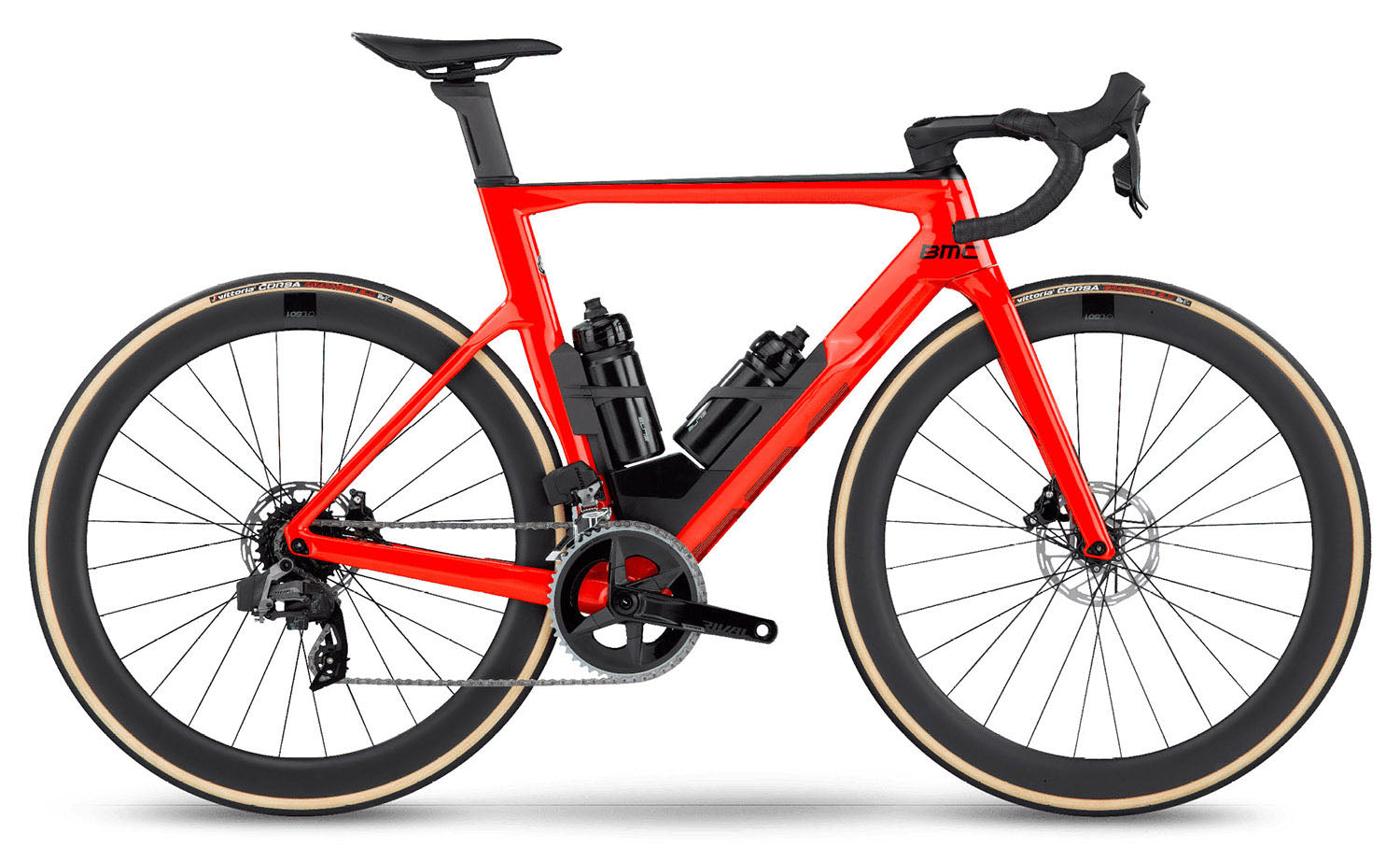

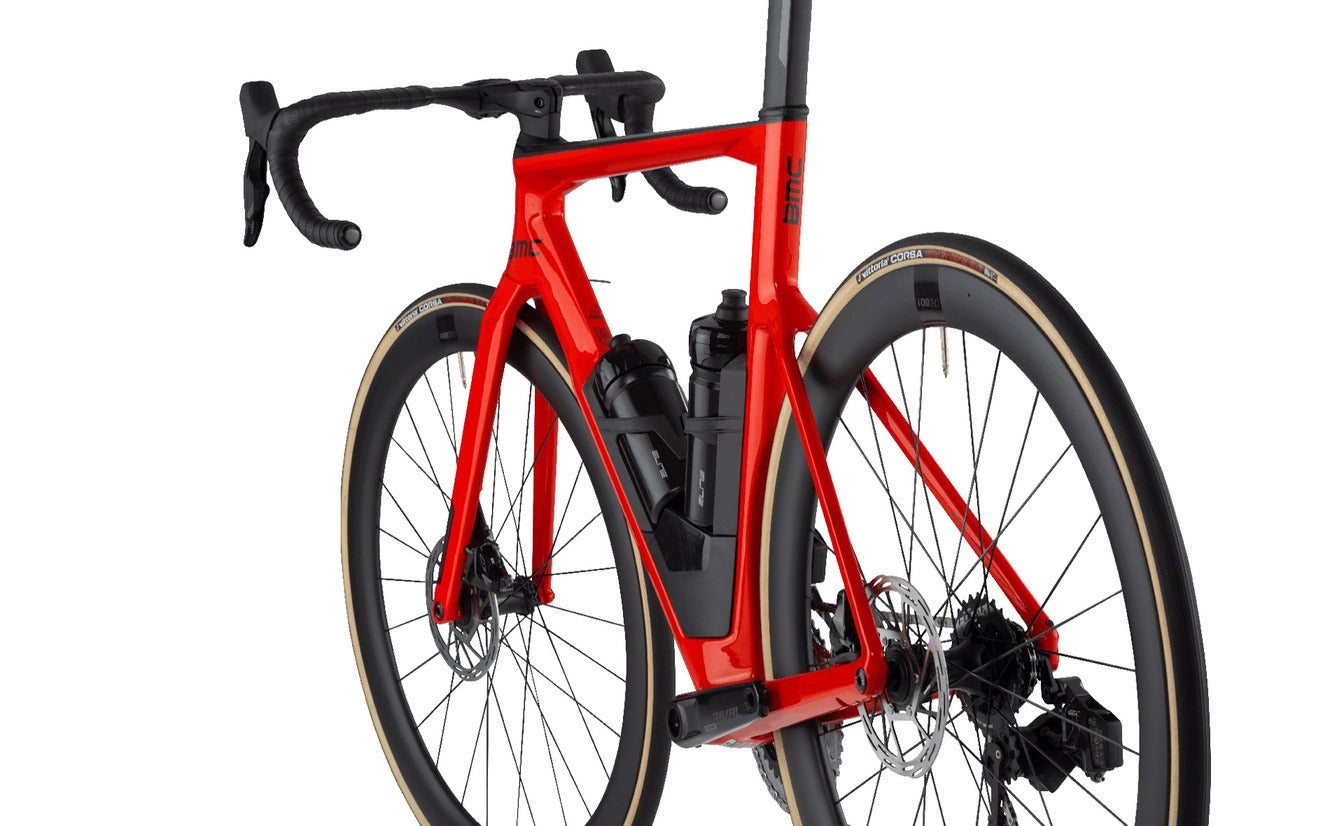

BMC Bikes | Timemachine ROAD 01 THREE RED / BLACK

Red / Black

BMC Archive Product

Compatible Parts & Accessories

[{"id":40929393246287,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30001463","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ROAD 01 THREE - 47","public_title":"47","options":["47"],"price":649900,"weight":12000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027872217","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40929393279055,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30001464","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ROAD 01 THREE - 51","public_title":"51","options":["51"],"price":649900,"weight":12200,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027872200","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40929393311823,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30001465","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ROAD 01 THREE - 54","public_title":"54","options":["54"],"price":649900,"weight":12200,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027872194","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40929393377359,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30001466","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ROAD 01 THREE - 56","public_title":"56","options":["56"],"price":649900,"weight":12200,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027872187","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40929393410127,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30001467","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ROAD 01 THREE - 58","public_title":"58","options":["58"],"price":649900,"weight":12200,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027872279","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40929393442895,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30001468","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ROAD 01 THREE - 61","public_title":"61","options":["61"],"price":649900,"weight":12200,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027872361","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Technical Overview

Frameset

Frame:
Timemachine Road 01 Premium Carbon with Aero Module Tuned Compliance Concept Speed | ICS Aero Technology Stealth Cable Routing | Integrated Seatpost clamp | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Timemachine Road 01 Premium Carbon with Integrated Aero Cover Tuned Compliance Concept Speed | ICS Technology Stealth Cable Routing | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset (Size 47-51) 43mm offset (Size 54-61)

Cockpit

Stem:
BMC ICS Aero | Integrated Aero Cockpit Design

Handlebar:
BMC ICS Aero | Aero Top Shape | Compact Bend

Seat

Seatpost:
Timemachine Road 01 Premium Carbon Aero Seatpost | 0 | 15 | 30mm adjustable Offset

Saddle:
Fizik Argo Vento R5 | 140mm

Drivetrain

Crankset:
SRAM Rival AXS

Chainrings:
48-35T

Cassette:
SRAM Rival (XG-1250)

Cassette Size:
10-30T

Chain:
SRAM Rival

Front Derailleur:
SRAM Rival eTap AXS

Rear Derailleur:
SRAM Rival eTap AXS

Shifters:
SRAM Rival eTap AXS HRD

Gears:
2 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM Rival eTap AXS HRD

Rotors:
SRAM Paceline

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
CRD-501 Carbon | Tubeless Ready | 50mm

Hubs (F/R):
CRD-501

Tires:
Vittoria Corsa | 25mm

Accessories

In the Box:
Aerocore Bottle Cages

Additional Information

Tire Clearance:
28mm

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	373	381	390	395	405	413
Stack	496	520	540	555	574	598
Bar Drop	122	122	122	122	122	122
Bar Reach	66	66	66	66	66	66
Bar Width	400	420	420	420	420	440
BB Drop	70	70	70	70	70	70
Crank Length	170	170	172.5	172.5	175	175
Fork Length	379	379	374	374	374	374
Fork Rake	50	50	45	45	45	45
Front Center	577	592	594	604	620	636
Head Tube	88	113	135	150	170	196
Head Tube Angle	71.2	71.2	72	72	72	72
Rear Center	410	410	410	410	410	410
Seat Angle	73.5	73.5	73.5	73.5	73.5	73.5
Seat Tube	480	518	548	568	588	611
Seatpost Length	210	210	270	270	270	270
Seatpost Offset	0 / 15 / 30	0 / 15 / 30	0 / 15 / 30	0 / 15 / 30	0 / 15 / 30	0 / 15 / 30
Standover Height	743	774	799	816	834	858
Stem Angle	-15	-15	-15	-15	-15	-15
Stem Length	100	100	110	110	110	120
Top Tube	520	535	550	560	575	590
Trail	62	62	62	62	62	62
Wheelbase	975	991	994	1004	1020	1036
